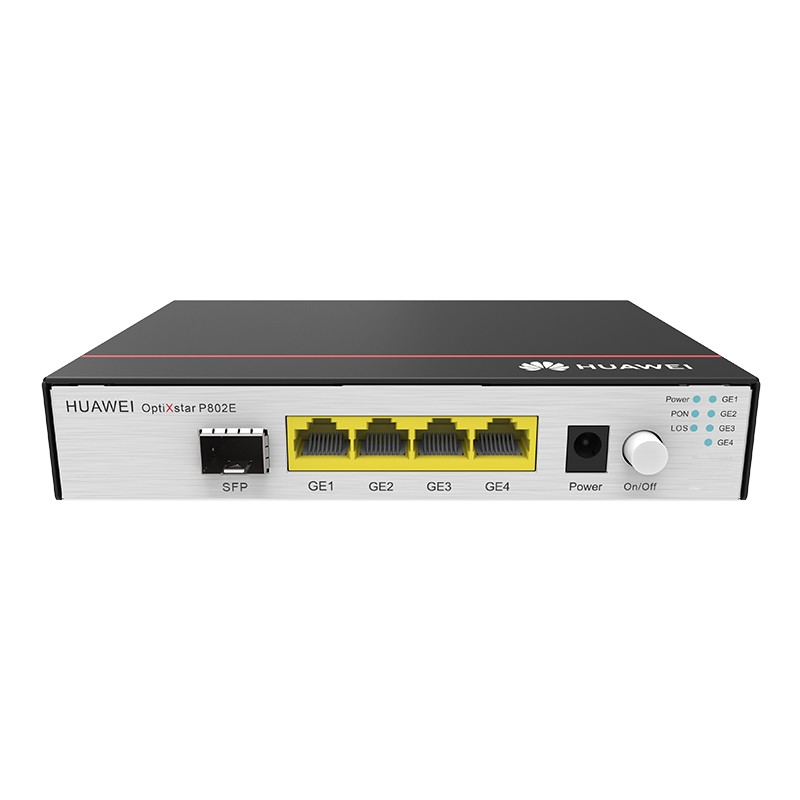

DescriptionHuawei OptiXstar P802E SpecificationNNIXGS-PONUNI4*GEDimensions (W x D x H)160mm x 110mm x 30mm (Without floor mat)Operating temperature-40°C to 55°COperating humidity5%RH to 95%RH (non-condensing)Power adapter input100V to 240V AC, 50/60HzSystem power supply11V to 14V (typical 12 V), 1AStatic power consumption4.5 WMaximum power consumption6 WSurge protection specificationsGE: common mode 6 kV; differential mode 1.5 kV.AC power: common mode 6kV; differential mode 6 kVInstallation modeSupport outdoor network box installation and indoor desktop installation, wall mounting, or network box installation.Port ParametersSFP· Support XGS-PON optical module· Class N1/N2;· Receiver sensitivity: -28dBm;· Overload optical power: -9dBm;· Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s· Type B single-homing· Type B dual-homing (supported in Layer 2 forwarding)GE· Port type: RJ-45· Auto ports speed (10/100/1000 Mbit/s)· Auto-MDI/MDIX· Configuration of the number of MAC addresses learned· VLAN transparent transmission/VLAN filteringFunction ListAutomatic Service Provisioning· Authentication exemption· XML/OMCI/TR069Multicast· IGMP v2/v3 snooping· Dynamic controllable multicast· IGMP proxy· MLDv1/MLDv2 snoopingSmart O&M· XML/Web UI· Rogue ONT detection and self-regulation· Ring network detection/PPPoE/DHCP simulation testingQoS· Ethernet port rate limitation· 802.1p priority· SP/WRR/SP WRRLayer 3 Features· Default/Static/Policy/Service routes· VLAN binding· ALG/UPnP/ARP· DDNS/DMZ/DNS/NAPT· PPPoE/Static IP/DHCP· Port mapping/Port trigger· IPv6Layer 2 Management· DHCP Option82· PITP· BPDU transparent transmission· LLDP/LLDP-MEDSecurity· 802.1x· IPv6/IPv4 firewalls· Filtering based on MAC/IP/URL· DoS/ARP anti-attacks· Static MAC address binding· Device access control· Web session number restriction
