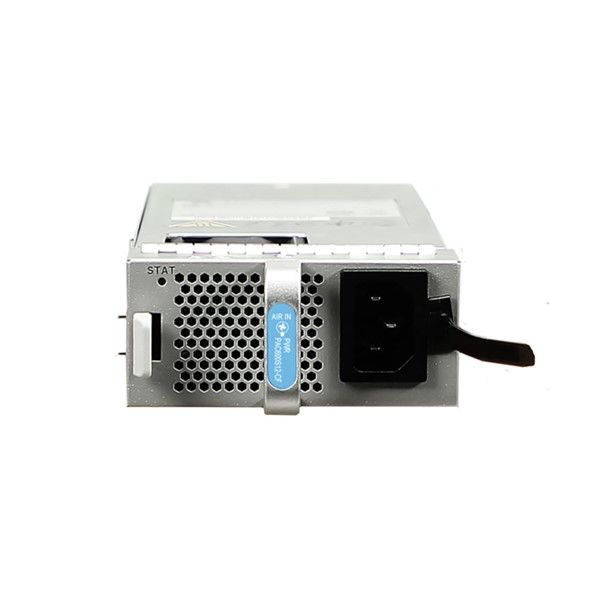

PAC60S12‑AR 60 W AC/DC Power Module

DescriptionThe Huawei PAC60S12‑AR is a compact enterprise‑grade 60 W power module designed to provide reliable power to compatible Huawei networking equipment such as USG and firewall chassis. It accepts a wide input range of 90 – 264 V AC (50/60 Hz) or 190 – 290 V DC, delivering a stable 12 V DC output at up to 5 A and up to 60 W of total output power. The module uses natural heat dissipation (fanless) for quiet operation and supports hot‑swap installation, enabling replacement without powering off the host device — ideal for mission‑critical environments where uptime matters. It features built‑in protections for output overcurrent, overvoltage, short circuits, and overtemperature to ensure dependable performance and safeguard connected systems.Key Features:60 W Power Output: Delivers stable 12 V/5 A output suitable for compatible switches and firewalls.Wide Input Range: Works with 90 – 264 V AC (50/60 Hz) or 190 – 290 V DC mains sources.Hot‑Swappable: Can be installed or replaced while the host device remains powered.Fanless Design: Natural heat dissipation without a built‑in fan keeps noise low.Built‑In Protections: Includes safeguards against overcurrent, overvoltage, short‑circuit, and overheating conditions.
