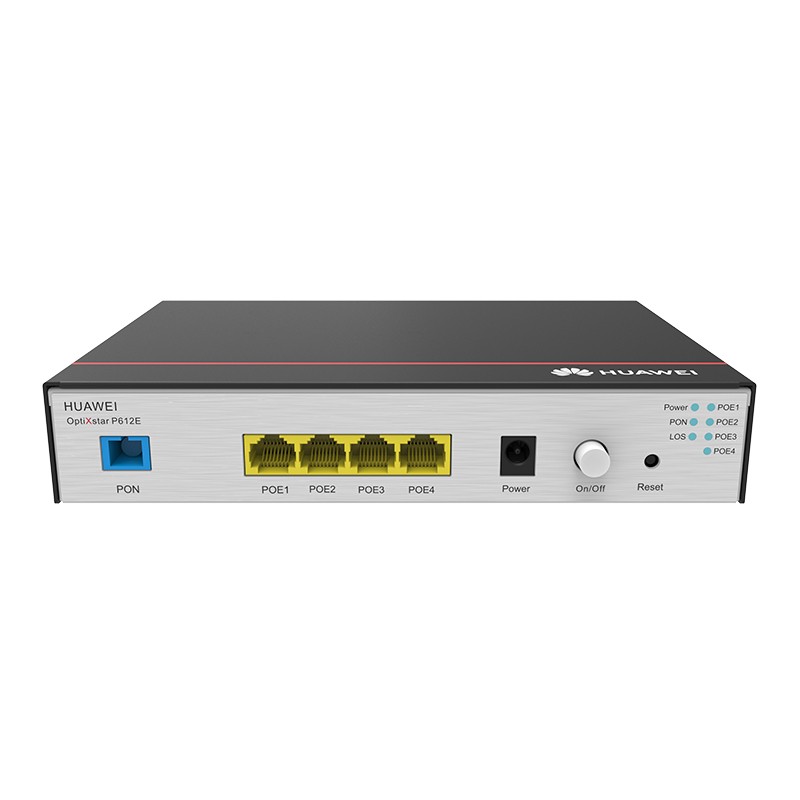

DescriptionHuawei OptiXstar P612E SpecificationNNIGPONUNI4*GE(PoE/PoE )Dimensions (W x D x H)190mm x 130mm x 35mm (Without floor mat)Operating temperature-5°C to 45°COperating humidity5%RH to 95%RH (non-condensing)Power adapter input100V to 240V AC, 50/60HzSystem power supply56V DC, 1.42AStatic power consumption7 WMaximum power consumption9 W (POE port without PD)77 W (POE port with PD having the maximum power consumption)Maximum PoE output powerGross power 60W (up to 30W for one GE port)Surge protection specificationsGE: common mode 4 kV; differential mode 0.5 kV.AC power: common mode 6kV; differential mode 6 kVInstallation modeSupport indoor desktop installation, wall mounting, or network box installation.Port ParametersPON· Port type: SC/UPC· Complying with ITU-T G.984.2, Class B · Receiver sensitivity: -27dBm;· Overload optical power: -8dBm;· Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s· Type B single-homing· Type B dual-homing (supported in Layer 2 forwarding)GE· PoE and PoE , complying with IEEE 802.3af and IEEE 802.3at· Port type: RJ-45· Auto ports speed (10/100/1000 Mbit/s)· Auto-MDI/MDIX· Configuration of the number of MAC addresses learned· VLAN transparent transmission/VLAN filteringFunction ListAutomatic Service Provisioning· Authentication exemption· XML/OMCI/TR069Multicast· IGMP v2/v3 snooping· Dynamic controllable multicast· IGMP proxy· MLDv1/MLDv2 snoopingSmart O&M· XML/Web UI· Rogue ONT detection and self-regulation· Ring network detection/PPPoE/DHCP simulation testingQoS· Ethernet port rate limitation· 802.1p priority· SP/WRR/SP WRRLayer 3 Features· Default/Static/Policy/Service routes· VLAN binding· ALG/UPnP/ARP· DDNS/DMZ/DNS/NAPT· PPPoE/Static IP/DHCP· Port mapping/Port trigger· IPv6Layer 2 Management· DHCP Option82· PITP· BPDU transparent transmission· LLDP/LLDP-MEDSecurity· 802.1x· IPv6/IPv4 firewalls· Filtering based on MAC/IP/URL· DoS/ARP anti-attacks· Static MAC address binding· Device access control· Web session number restriction
