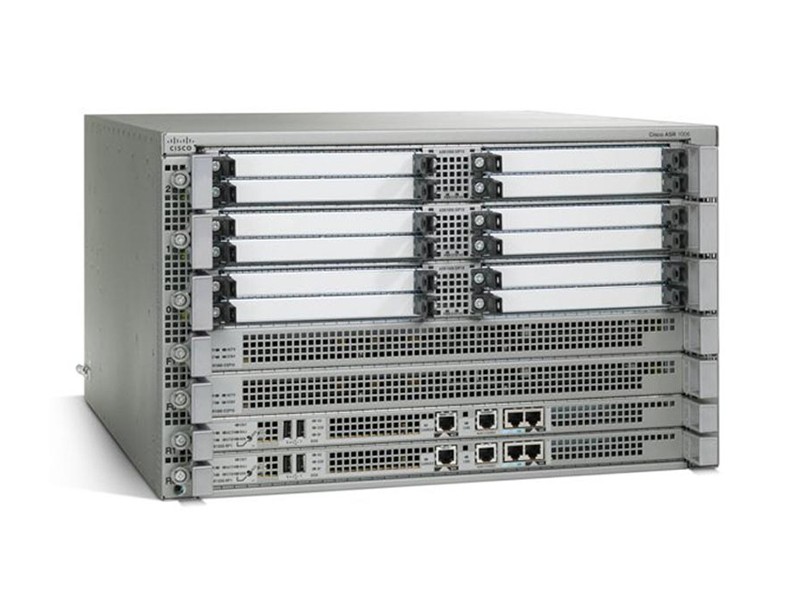

DescriptionASR1006 SpecificationsPhysical specificationsNote: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.Refer to the applicable hardware installation guide for additional details.Height: 10.5 in. (266.7 mm)Width: 17.2 in. (437.4 mm)Depth: 18.15 in. (461.0 mm)Weight:● 98.70 lb (44.77 kg) (with dual AC power supply, SPA, route processor, two Cisco ASR 1000 Series 10-Gbps ESPs [ASR1000-ESP10] or ASR 1000 Series 40-Gbps ESPs [ASR1000-ESP-40] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100], two Cisco ASR 1000 Series RP1s [ASR1000-RP1], three Cisco ASR 1000 Series 10-Gbps SIPs [ASR1000-SIP10] or ASR1000 Series 40-Gbps SIPs [ASR1000-SIP-40], and no SPAs)Default memory4-GB DRAM RP18-GB DRAM RP2Number of SIPs or Ethernet line cards supported3Shared port adapters12 SPA slotsEthernet port adaptersN/ACisco ASR 1000 Series ESP2 ESP slotsRoute processor2 route-processor slotsRedundancyHardware: YesBuilt-in Gigabit Ethernet ports0Built-in 10 Gigabit Ethernet portNoNetwork interface moduleNoCisco ASR 1000 SeriesCisco ASR 1006ESP supportCisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10), noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N), Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20), Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40), and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100)ESP bandwidth10 to 100 GbpsESP memoryCisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) and ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10): 2‑GB DRAM default; 2‑GB DRAM maximumCisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20): 4‑GB DRAM default; 4‑GB DRAM maximumCisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40): 8‑GB DRAMCisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAMSIPs and Ethernet line cardsSupports Cisco ASR 1000 Series 10-Gbps SIP Carrier Card (ASR1000-SIP10), Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), and ASR 1000 Fixed Ethernet Line Card; two 10 GE twenty 1 GE line cards (ASR1000-2T 20X1GE); and six 10 GE line cards (ASR1000-6TGE)Embedded hardware-based encryptionYes: On Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4-Gbps crypto support throughput, Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20) with up to 8-Gbps crypto support throughput, Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput, and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughputNote: No support on noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N)Minimum Cisco IOS XE Software releaseSame as for Cisco ASR 1002 except Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) requires Cisco IOS XE Software Release 3.1.0SNote: Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) requires Cisco IOS XE Software Release 3.7.0S.Rack-mountingYes: 19-inchWall-mountingNoExternal USB flash memory1-GB USB flash-memory supportRedundant power supplySame as for Cisco ASR 1002Power inputSame as for Cisco ASR 1002Power consumption● Maximum (DC): 1700W● Maximum (AC): 1600W● Maximum (out): 1275WOr● Maximum (DC): 2100W● Maximum (AC-high line): 2000W● Maximum (out): 1695WAirflowFront-to-backOperating temperature (nominal)32 to 104°F (0 to 40°C)Operating temperature (short-term)32 to 122°F (0 to 50°C)Operating humidity (nominal) (relative humidity)10 to 85%Operating humidity (short-term)5 to 90%Storage temperature-40 to 150°F(-40 to 70°C)Storage humidity (relative humidity)5 to 95%Operating altitude-500 to 10,000 feet (152 to 3048 meters)Network Equipment Building Standards (NEBS)GR-1089 and GR-63EMC standards● FCC 47 CFR Part 15 Class A● VCCI Class A● AS/NSZ Class A● ICES-003 Class A● EN55022/CISPR 22 Information Technology Equipment(Emissions)● EN55024/CISPR 24 Information Technology Equipment(Immunity)● EN300 386 Telecommunications Network Equipment● (EMC)● EN50082-1/EN61000-6-1 Generic Immunity StandardSafety StandardUL60950-1CSA C22.2 No. 60950-1-03EN 60950-1IEC 60950-1AS/NZS 60950.1
