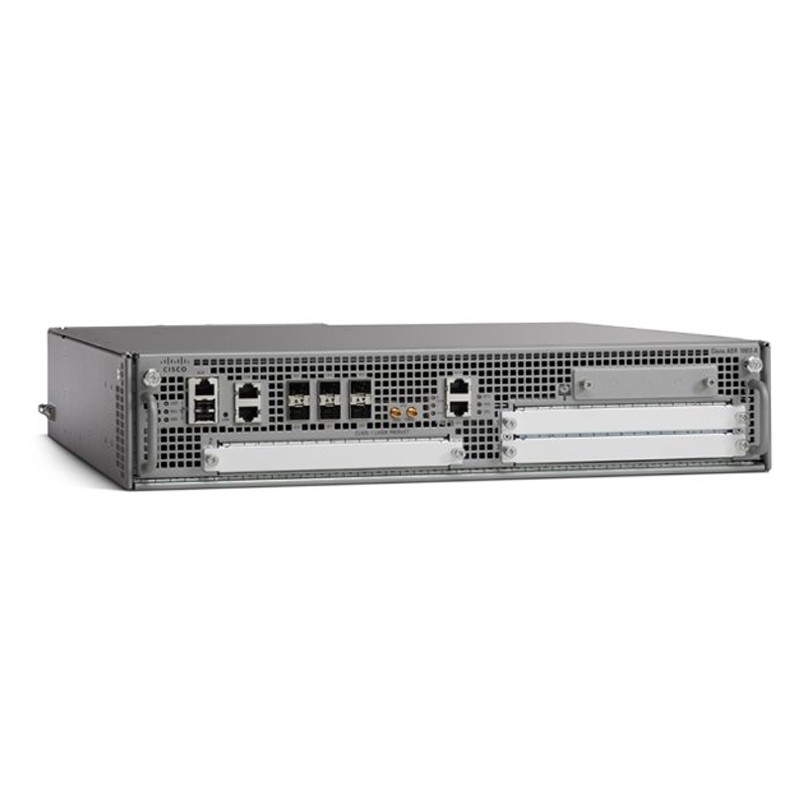

DescriptionASR1002X-10G-K9 ASR 1002-XPhysical specificationsNote: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.Refer to the applicable hardware installation guide for additional details.Height: 3.5 in. (88.9 mm)Width: 17.2 in. (437.4 mm)Depth: 18.15 in. (461.0 mm)Weight:● 38.25 lb (17.36 kg) (with dual AC power supply and SPA blank covers)● 39.05 lb (17.72 kg) (with dual DC power supply and blank covers)● No SPAs includedNote: The Cisco ASR 1002-X has the route processor, ESP, and SIP integrated.Default memory4-GB DRAM shared across route processor, ESP, and SIPNumber of SIPs or Ethernet line cards supportedIntegrated in chassisShared port adapters3 SPA slotsEthernet port adaptersN/ACisco ASR 1000 Series ESPIntegrated in chassisRoute processorIntegrated in the chassis: Cisco ASR 1002-X Series Route Processor with Quad Core ProcessorRedundancySoftware: YesBuilt-in Gigabit Ethernet portsYes: 6 Gigabit Ethernet SFP portsBuilt-in 10 Gigabit Ethernet portNoNetwork interface moduleNoCisco ASR 1000 SeriesCisco ASR 1002-XESP supportCisco ASR 1002-X ESP with 5-Gbps (default)Upgradable through software-activated feature license to 10, 20, or 36 GbpsESP bandwidth5 to 36 GbpsESP memoryShare the same control memory on route processorSIPs and Ethernet line cardsIntegrated in chassis: not upgradableEmbedded hardware-based encryptionYes: Up to 4-Gbps crypto support throughputMinimum Cisco IOS XE Software releaseCisco IOS XE Software Release 3.7.0SRack-mountingYes: 19-inchWall-mountingNoExternal USB flash memory1-GB USB flash-memory supportRedundant power supplySame as for Cisco ASR 1002Power inputSame as for Cisco ASR 1002Power consumption● Maximum (DC): 590W● Maximum (AC): 560W● Maximum (out): 470WAirflowFront-to-backOperating temperature (nominal)32 to 104°F (0 to 40°C)Operating temperature (short-term)32 to 122°F (0 to 50°C)Operating humidity (nominal) (relative humidity)10 to 85%Operating humidity (short-term)5 to 90%Storage temperature-40 to 150°F(-40 to 70°C)Storage humidity (relative humidity)5 to 95%Operating altitude-500 to 10,000 feet (152 to 3048 meters)Network Equipment Building Standards (NEBS)GR-1089 and GR-63EMC standardsSame as for Cisco ASR 1001-XSafety StandardUL60950-1CSA C22.2 No. 60950-1-03EN 60950-1IEC 60950-1AS/NZS 60950.1
